Photos → near-net-shape
Identify the part, communicate its form and prepare ROM supplier conversations. Photo-only NNS is not a production-ready replacement model.
Spare Parts
Spare part without CAD? Start with a photo or an old drawing
Help MRO and spare-parts teams turn field evidence into a sourcing decision—and archived drawings into an engineering hand-off.
Source evidence · inspectable results · engineering options
3D Spark is trusted by
Move a missing-CAD part out of the sourcing queue
Today
A discontinued supplier, an old machine and a worn component leave maintenance teams without the geometry needed to brief suppliers.
With Voluminate
Start with the evidence at hand. Get a shape for identification and rough quoting, or recover drawing-based CAD for engineering and supplier review.
Who it’s for
Teams
- MRO managers
- Spare-parts managers
- Maintenance engineering
- Procurement
Industries
- Rail
- Energy
- Process plants
- Industrial machinery
Processes
- Casting
- CNC machining
- Additive manufacturing
Two sources. Two different starting points.
Drawings / scans → editable CAD
Recover dimensioned geometry. Add Engineer Checked or Engineer Built to prepare a production model within your engineering-release process.
The workflow
From source evidence to your next decision
- 01
Gather the evidence
Upload a photo or an archived drawing. Record the function, interfaces and dimensions you can confirm.
- 02
Choose the right output
Use photo-based near-net-shape for identification and ROM, or drawing-based AI CAD for editable geometry.
- 03
Resolve fit and function
Use Engineer Checked or Engineer Built to review or rebuild the geometry needed for a production model.
- 04
Brief the supplier
Share the agreed model, material, tolerances and inspection requirements through your existing sourcing process.
What you get
Identification and supplier screening
A near-net-shape model helps communicate the part's form and assess potential suppliers before investing in detailed engineering.
Recover nominal geometry
Archived drawings and scans provide design dimensions; compare them with field evidence to distinguish intended shape from wear.
Production-model support
Engineer Checked reviews the agreed geometry; Engineer Built provides a parametric rebuild for your engineering release process.
Source & deliverable evidence
From physical evidence to reconstruction candidates

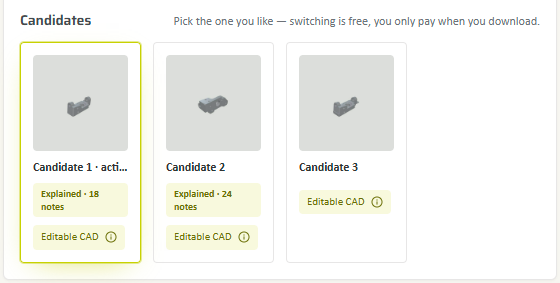

The cast-part photo illustrates the source evidence available to maintenance teams. The candidate gallery below is a separate Voluminate example, showing how alternative reconstructions can be compared.
Your numbers, your business case
Plan recurring spare-part reconstruction
Compare reconstruction and review effort. Downtime benefits are not assumed in the calculator.
Questions about spare parts
What can I get from a photo alone?
A near-net-shape (NNS) reconstruction for identification, communication and rough-order-of-magnitude (ROM) quoting. A photograph does not establish production dimensions or hidden geometry.
What changes when I have an old drawing or scan?
Legible views and dimensions enable drawing-based editable CAD reconstruction. Add engineering review or a rebuild when you need a production model.
Can a worn part define the replacement geometry?
It provides useful evidence, but wear is not nominal design intent. Supply drawings, measured interfaces and functional requirements to resolve the intended geometry.
Should I choose Engineer Checked or Engineer Built?
Choose Engineer Checked for review of a reconstruction within an agreed scope. Choose Engineer Built for a full parametric rebuild or where critical details need engineering completion.
Can this support obsolete and defense spare parts?
Yes, legacy-part reconstruction supports sustainment planning. The Defense & Obsolescence page explains unclassified self-service and the separate requirements discussion for controlled data.
Does Voluminate certify a replacement part?
No. Your engineering release, inspection and sector-specific approval process establishes suitability and interchangeability.
